Pylontech Pelio
https://pylonwebs3.s3.amazonaws.com/upload/2024/09/25/RESS-Installation%20Manual-Pelio%205PMPA08-00124_20240925122854A042.pdf
Set the 'StartV' for the voltage at which charging should initiate.
Float V = 55.7 V
Absorption V = 56.0 V
Equalization V = 56.0 V
Then enable BMS 00

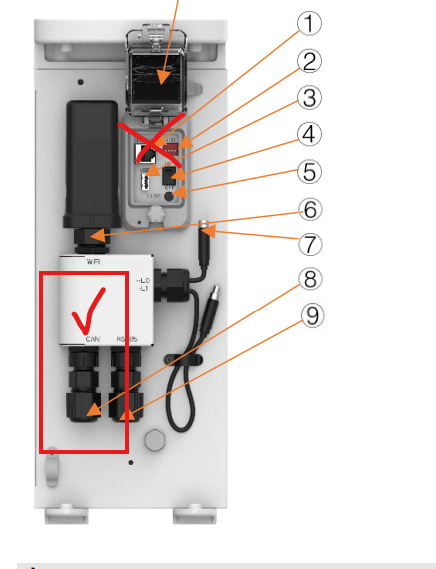

For the communication run between the battery and inverter, do not use the battery maintenance comm port. Use the CAN port and set BMS to 00.
Set the 'StartV' for the voltage at which charging should initiate.
Float V = 55.7 V
Absorption V = 56.0 V
Equalization V = 56.0 V
Then enable BMS 00
For the communication run between the battery and inverter, do not use the battery maintenance comm port. Use the CAN port and set BMS to 00.
